Chicago Doppler Radar Guide (2026): Live Storm Tracking, KLOT Coverage, & Advanced Radar Interpretation

Disambiguation Note: This technical operational guide covers meteorological Doppler radar monitoring across the Greater Chicago Metropolitan Area, focusing on National Weather Service station KLOT (Romeoville) and regional Terminal Doppler Weather Radar (TDWR) systems.

The Chicago metropolitan region presents one of North America’s most complex microclimate environments for meteorological tracking. Positioned along the southwestern shore of Lake Michigan, Chicagoland is routinely subjected to rapid severe weather transitions—ranging from spring tornadic squall lines and derecho events to mesoscale convective systems (MCS) and winter lake-effect snow plumes.

To navigate these hazardous conditions safely, emergency management officials, aviation coordinators, and local residents rely on Doppler radar technology. Understanding how Chicago’s Doppler weather radar infrastructure functions—and knowing how to correctly interpret real-time velocity, reflectivity, and dual-polarization data—is critical for actionable situational awareness across Cook, DuPage, Lake, Will, and surrounding counties.

The Chicagoland Doppler Radar Network: KLOT and Airport TDWR Infrastructure

The primary workhorse for storm tracking in Northeastern Illinois and Northwest Indiana is the NEXRAD (Next Generation Weather Radar) WSR-88D installation designated as KLOT, located in Romeoville, Illinois. Operated by the National Weather Service (NWS) Chicago Forecast Office, KLOT provides long-range volume scans covering a broad radius of over 230 miles for reflectivity and roughly 145 miles for velocity data.

Because Chicago hosts two of the busiest airport hubs in the world—O'Hare International (ORD) and Midway International (MDW)—the Federal Aviation Administration (FAA) operates dedicated Terminal Doppler Weather Radar (TDWR) units to supplement the primary WSR-88D station.

1. NWS WSR-88D (Romeoville - KLOT)

• S-Band Frequency (2.7 – 3.0 GHz): Uses long-wavelength radar pulses (around 10 cm) that easily penetrate heavy precipitation without severe attenuation (signal weakening).
• Dual-Polarization Capabilities: Emits horizontal and vertical pulses to determine the exact shape, size, and phase (liquid vs. solid) of airborne hydrometeors.
• Volume Scan Strategies: Cycles through various tilt angles (from 0.5° up to 19.5°) every 2 to 7 minutes, depending on whether it operates in Clear Air Mode or Severe Weather Precipitation Mode.

2. FAA Terminal Doppler Weather Radars (TORD & TMDW)

• C-Band Frequency (5.0 – 5.6 GHz): Operates on shorter wavelengths (around 5 cm), providing ultra-high spatial resolution along critical flight glide paths.
• Rapid Update Interval: Scans low-level tilts every 45 to 60 seconds, specifically optimized to detect microbursts, low-level wind shear, and sudden gust fronts near airport runways.
• Attenuation Sensitivity: While offering higher detail than S-band radar, C-band signals can be attenuated or blocked when scanning through intense core hail shafts or exceptionally heavy rain.

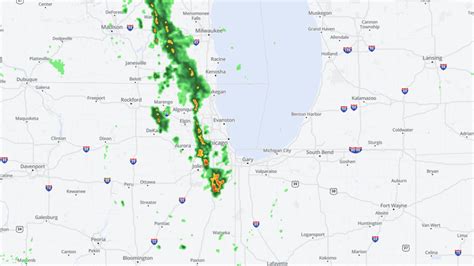

Technical Deciphering: How to Read Chicago Doppler Radar Data

Modern radar interface tools provide multiple product channels beyond basic rainbow reflectivity maps. To accurately analyze incoming storms from Iowa or across Lake Michigan, you must understand four fundamental radar products.

Base Reflectivity (Z) Measured in decibels of Z ($dBZ$), reflectivity indicates the density and size of precipitation particles within a given radar volume. dBZ values ranging from 20 to 35 signal light-to-moderate rain or snow, while values exceeding 50 to 60 dBZ indicate severe convection, intense torrential downpours, or large hail.

Radial Velocity (Base & Composite Velocity) Velocity displays measure the speed and direction of objects moving directly toward (green hues) or away from (red/pink hues) the radar site in Romeoville. When bright greens and bright reds appear immediately adjacent to one another, it signals a velocity couplet, indicating localized rotation or severe shear.

Storm Relative Motion (SRM) SRM subtracts the overall speed and direction of the storm complex from the underlying velocity background. This isolates localized cyclonic flow, allowing meteorologists to spot Tornado Vortex Signatures (TVS) embedded inside fast-moving squall lines or mesocyclones before severe damage occurs at ground level.

Correlation Coefficient (CC or $\rho_{hv}$) As a core metric of Dual-Polarization radar, CC measures how uniformly precipitation particles behave in size and shape within a radar volume. Rain and snow display high correlation values (above 0.95). A abrupt drop in CC (below 0.80) inside a strong velocity couplet identifies a Tornado Debris Signature (TDS), proving that structural debris, trees, or soil have been lofted into the atmosphere.

Regional Meteorological Dynamics & Radar Anomalies in Chicagoland

Interpreting Doppler radar over Chicagoland requires accounting for unique regional physical factors that frequently alter or distort radar returns.

[ Lake Breeze Boundary ] <--- Cool Dense Air Push [Warm Land Convection] ===> | <=== [Lake Michigan Air Mass] | Enhanced Convergence & Storm Initiation

1. Lake Breeze Front Convergence

During spring and summer afternoons, the land surface heats up much faster than Lake Michigan's cold waters. The resulting density gradient forces a cool "lake breeze front" westward into Cook, Lake, and Will counties. On reflectivity scans, this front appears as a faint, narrow line of low dBZ returns (10–20 dBZ) caused by atmospheric boundary line convergence lifting dust and insects. These boundaries frequently trigger sudden, localized severe thunderstorms right along the I-94 and I-294 corridors.

2. Lake-Effect Snow Banding

In late fall and winter, cold arctic air flowing across warm lake waters generates intense, narrow bands of lake-effect snow. Because snow clouds are shallow (often staying under 8,000 feet altitude), radar beams from KLOT Romeoville can overshoot the tops of distant snow bands over Lake and Porter counties in Indiana due to the Earth's natural curvature. Observing low-tilt scans (0.5°) is critical for accurate winter tracking.

3. Anomalous Propagation (AP) and Ducting

During stable temperature inversions—common near Lake Michigan at dawn or during summer night shifts—the radar beam curves back toward the ground instead of traveling straight out into space. This causes ground clutter (buildings, highways, windmills) to appear as strong false precipitation returns on radar screens.

Comparative Analysis: Romeoville WSR-88D vs. Airport TDWR Radar

The table below contrasts the main Doppler radar units serving the Greater Chicago Area:

Operational Checklist: Tracking Severe Weather in Chicago Step-by-Step

When severe weather approaches Northern Illinois, follow this systematic workflow to monitor conditions using Doppler radar data tools.

1. Monitor Composite Reflectivity for Approaching Squall Lines: Look west toward the Rock River Valley (Rockford to Sterling). Scan for continuous squall lines displaying "bow echo" structures, which signal high-velocity straight-line damaging winds (derechos) heading toward the Chicago suburbs.

2. Switch to Storm Relative Motion (SRM) on Cell Approach: If a supercell isolates ahead of a main line over DuPage or Will County, view SRM velocity products. Search for inbound (green) and outbound (red) velocity pairs occurring side-by-side (a rotational couplet).

3. Verify Ground Impact with Dual-Pol Correlation Coefficient (CC): When a severe velocity couplet is identified, check the Correlation Coefficient product. If CC drops significantly (appearing as a dark blue or yellow spot) at the exact location of the velocity couplet, a tornado has touched down and lifted physical ground debris.

4. Track Low-Level Gust Fronts via Airport TDWRs: If traveling near O'Hare, Midway, or downtown Chicago, open live TDWR scans (TORD/TMDW). Look for narrow velocity boundary lines that indicate microburst outflows capable of producing sudden 60+ mph wind gusts prior to rain arrival.

5. Cross-Reference Radar Tilt Levels: Never rely solely on the lowest 0.5° tilt angle. View higher elevation tilts (1.5°, 2.4°, and 3.1°) to inspect hail core strength upstairs in the thunderstorm cell, checking for bounded weak echo regions (BWER) that indicate intense storm updrafts.

Pros and Technical Limitations of Chicago Doppler Radar Infrastructure

Advantages

• Triangulated Radar Coverage: The combination of KLOT in Romeoville, TORD at O'Hare, TMDW at Midway, and nearby regional radars (LOT, LOT-TDWR, VWX in Northern Indiana, and MKX in Milwaukee) eliminates single-point blind spots across Chicagoland.
• Supplemental Adaptive Intra-Volume Low-Level Scans (SAILS): Allows the WSR-88D radar to insert extra 0.5° scans into a single volume sweep, updating low-level storm motion every 70 to 90 seconds during tornado emergencies.
• Hydrometeor Classification Accuracy: Dual-Pol technology successfully differentiates between wet snow, sleet, hail, and large rain drops, helping municipal salt fleets respond efficiently during winter storms.

Limitations & Failure Modes

• Beam Elevation Curve (Radar Horizon): As the radar beam travels outward from Romeoville, it gains height above ground level. At a distance of 80 miles (e.g., eastern Lake County, IN or western Winnebago County), the beam scans several thousand feet above the surface, potentially underscanning low-level tornadoes or shallow winter freezing drizzle.
• Urban Signal Clutter: The high density of tall skyscrapers in downtown Chicago (the Loop) can occasionally block or refract radar beams scanning low elevation angles directly over the lakefront from western radar sites.
• C-Band Signal Attenuation: During severe convective storms with severe hail cores, TDWR signals from O'Hare or Midway can become temporarily attenuated, underreporting storm intensity behind the front edge of heavy rain shafts.

Frequently Asked Questions

Why does precipitation sometimes disappear on Doppler radar right as it reaches Lake Michigan?

Cold lake water suppresses warm surface air currents required to sustain severe convection during late spring and early summer. As severe convective storms push east over the cooler lake, updrafts weaken rapidly, causing high dBZ reflectivities to collapse on radar.

What is the difference between KLOT radar and airport TDWR radar screens?

KLOT (Romeoville WSR-88D) offers broad regional tracking and dual-polarization precipitation typing over long distances. TDWR stations (TORD and TMDW) focus tightly on small geographic areas surrounding O'Hare and Midway, offering updated low-level wind shear scans every minute.

What does a "hook echo" on a Chicago radar map mean?

A hook echo is a classic pendant-shaped reflectivity signature extending from the rear flank of a supercell thunderstorm. It indicates that precipitation is being swept around a strong cyclonic mesocyclone, signaling high potential for tornado development.

How does Doppler radar detect snow versus rain during freezing winter events?

Using Dual-Polarization metrics—specifically Differential Reflectivity ($Z_{DR}$) and Correlation Coefficient ($\rho_{hv}$)—the radar evaluates particle symmetry. Flat raindrops produce higher horizontal reflectivity than tumbling, irregularly shaped ice crystals or snowflakes, allowing automated rain/snow classification.

How fast does live Chicago Doppler radar data refresh on public web apps?

Standard NEXRAD reflectivity updates occur every 4 to 6 minutes. However, during severe weather operations, National Weather Service SAILS scan routines refresh the lowest, most critical 0.5-degree scan tilt every 70 to 90 seconds.

Real-Time Weather Readiness & System Integration

For emergency management teams, urban commuters, and aviation operators across the Chicagoland footprint, utilizing Doppler radar requires more than looking at green-to-red rain maps. Understanding the operational differences between the Romeoville WSR-88D (KLOT) and the dual urban TDWR sites ensures accurate interpretation of severe weather events year-round.

When severe weather threatens Cook County or Lake Michigan, cross-reference multiple scan elevation angles, monitor velocity couplets via Storm Relative Motion, and verify ground impact using Correlation Coefficient data.
